Hot Tub Spa Control System + Pump Set [ID 1023.01]

Hot Tub Spa Control System + Pump Set [ID 1007.xx]

Description

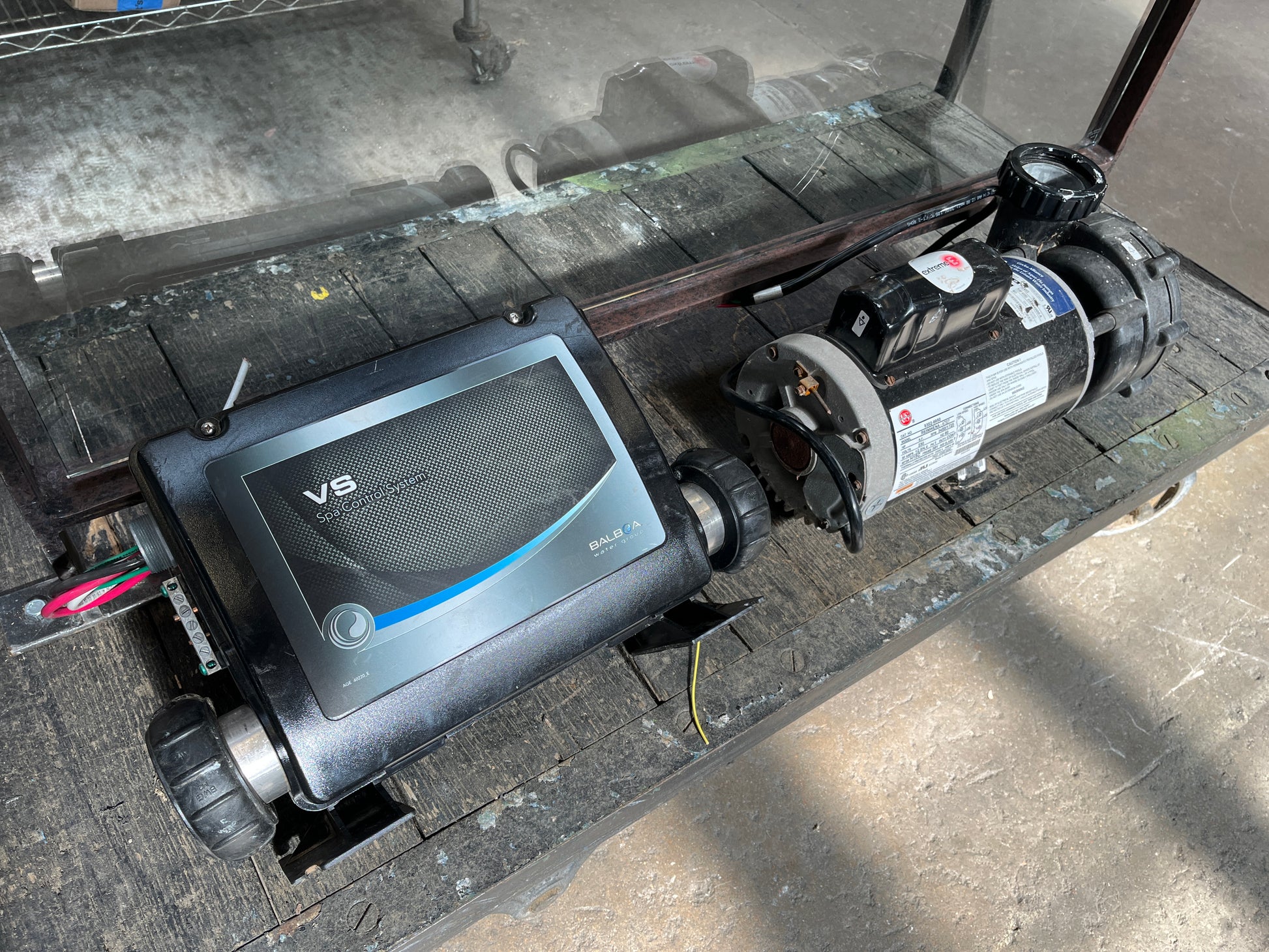

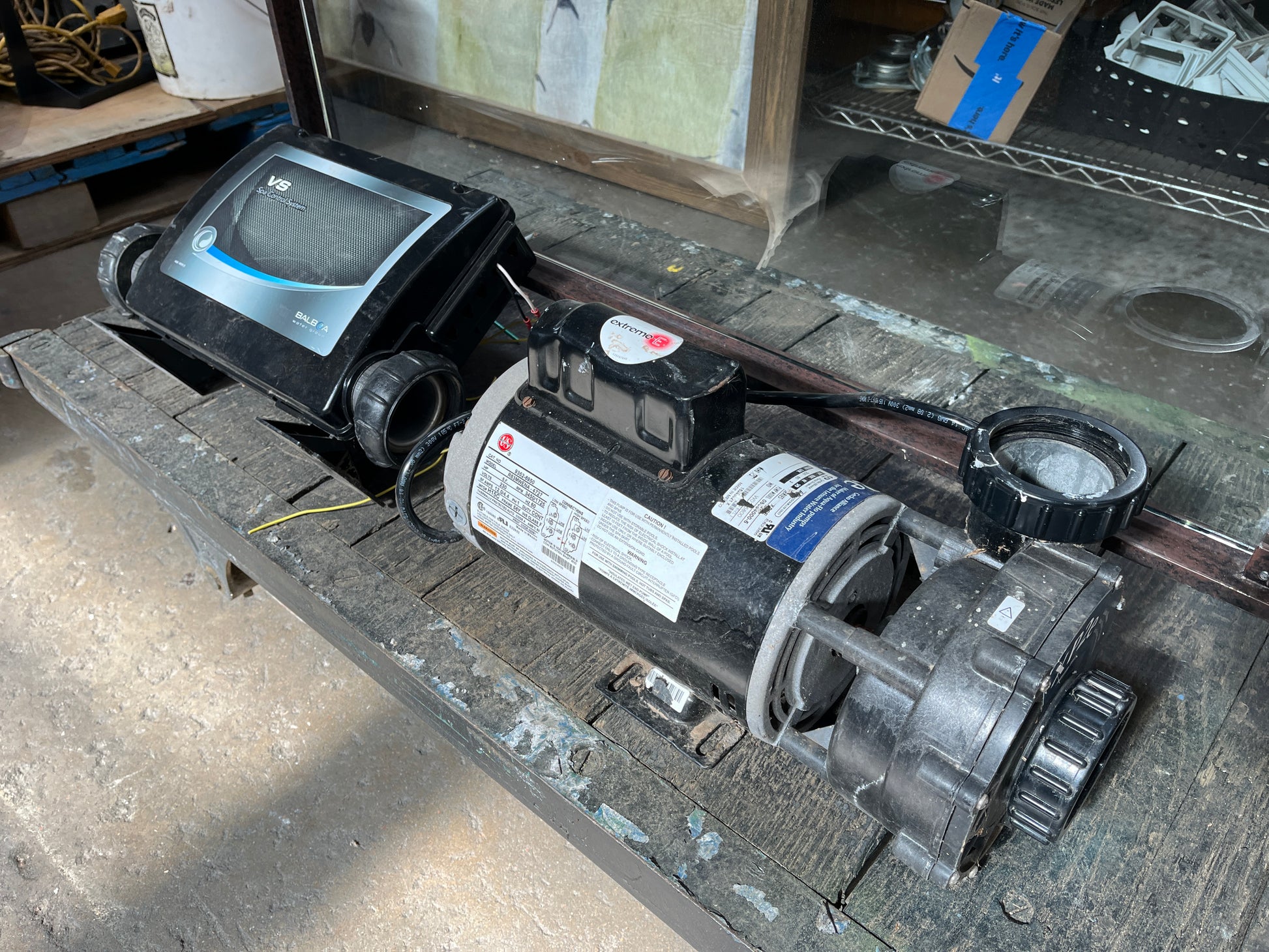

Complete matched spa equipment bundle including a Balboa VS300AV control system with integrated 4.0 kW heater and an Aqua-Flo/Gecko XP2e two-speed pump. Ideal for hot tub repairs, refurbishments, or custom spa builds. Components were removed from a working unit and appear to be in good condition with normal cosmetic wear from prior use.

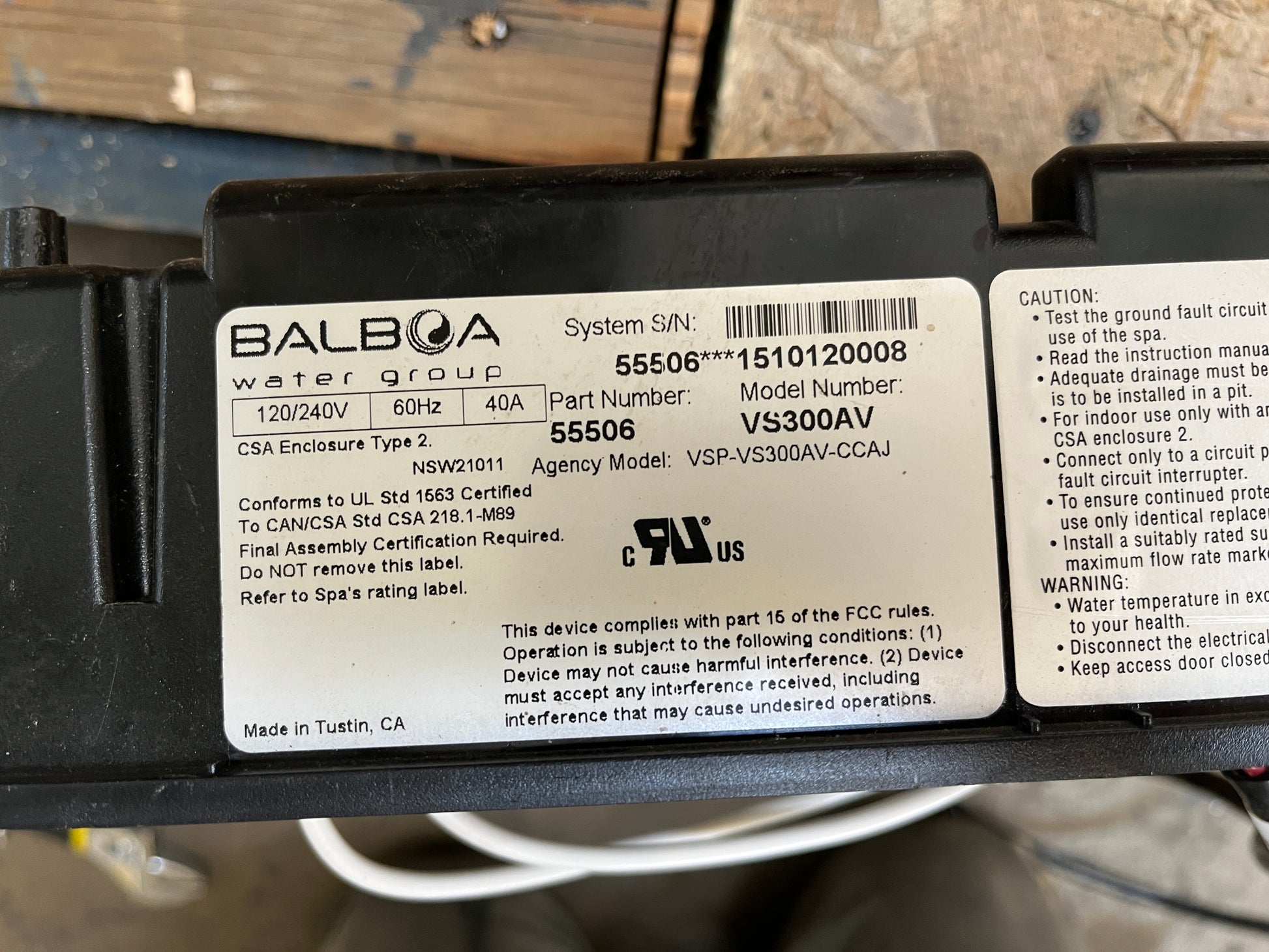

Control System

• Brand: Balboa Water Group

• Model: VS300AV

• Part Number: 55506

• Voltage: 120/240V

• Amperage: 40A

• Integrated 4.0 kW heater

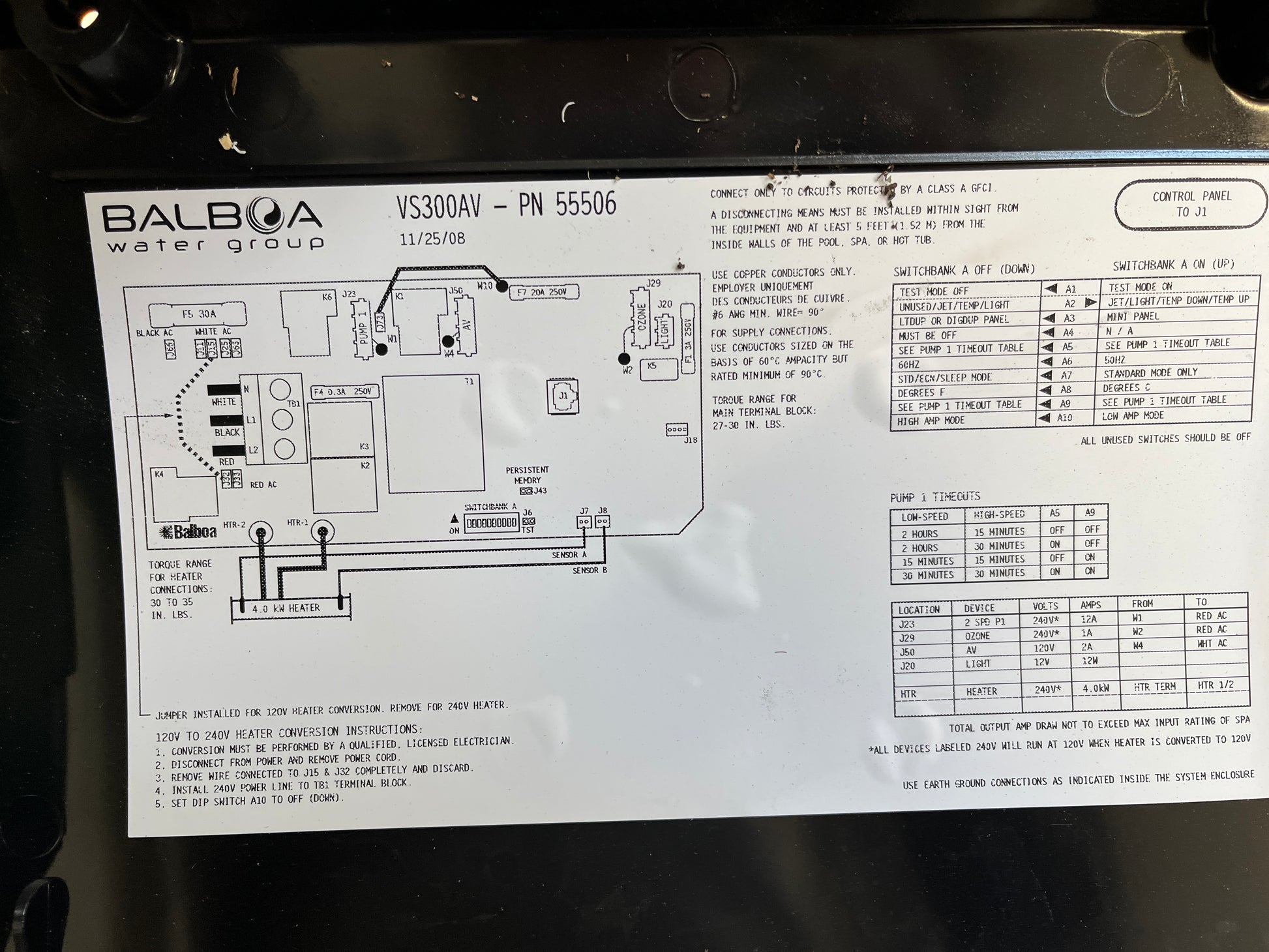

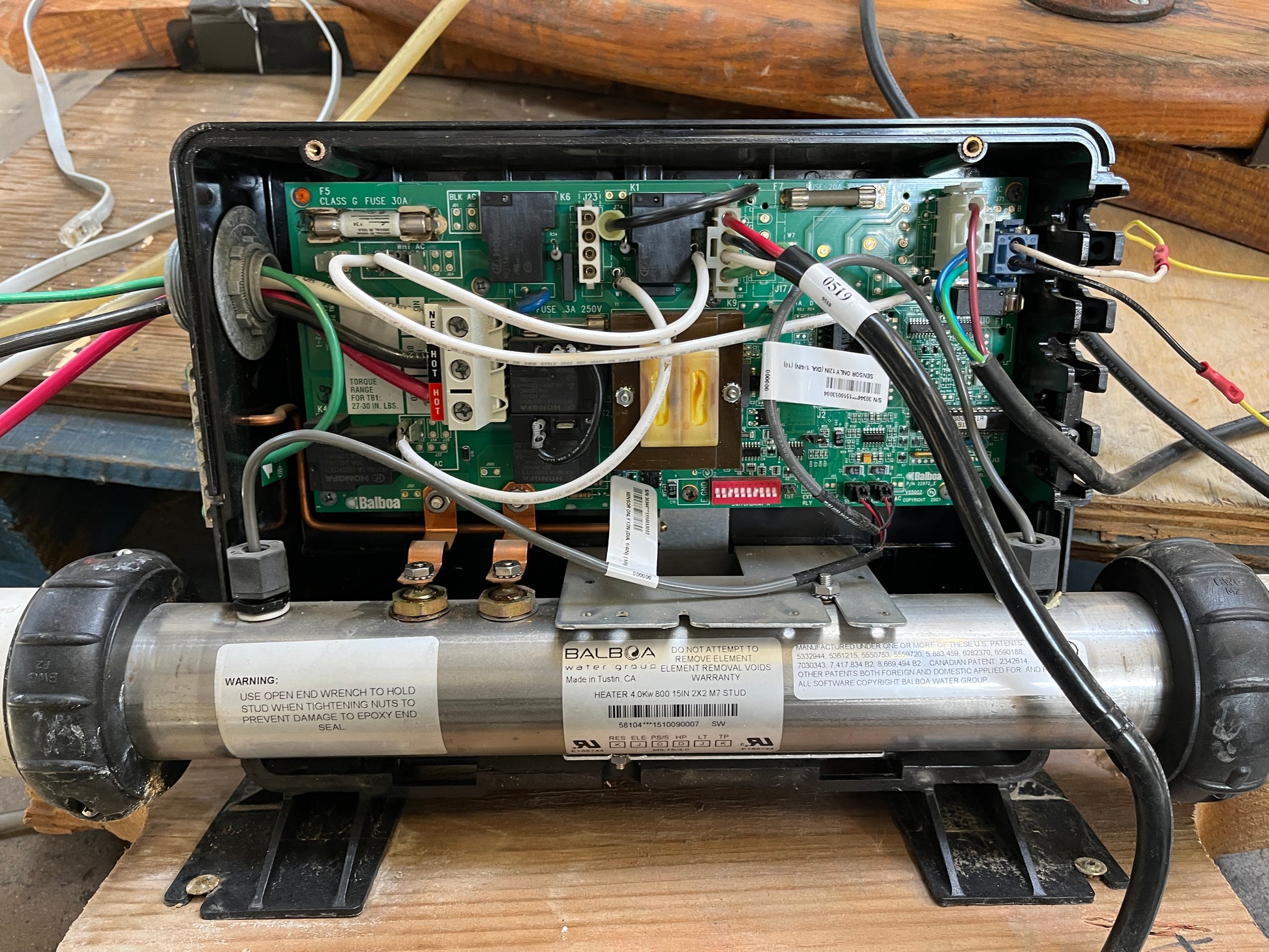

• All wiring and board components present (see photos)

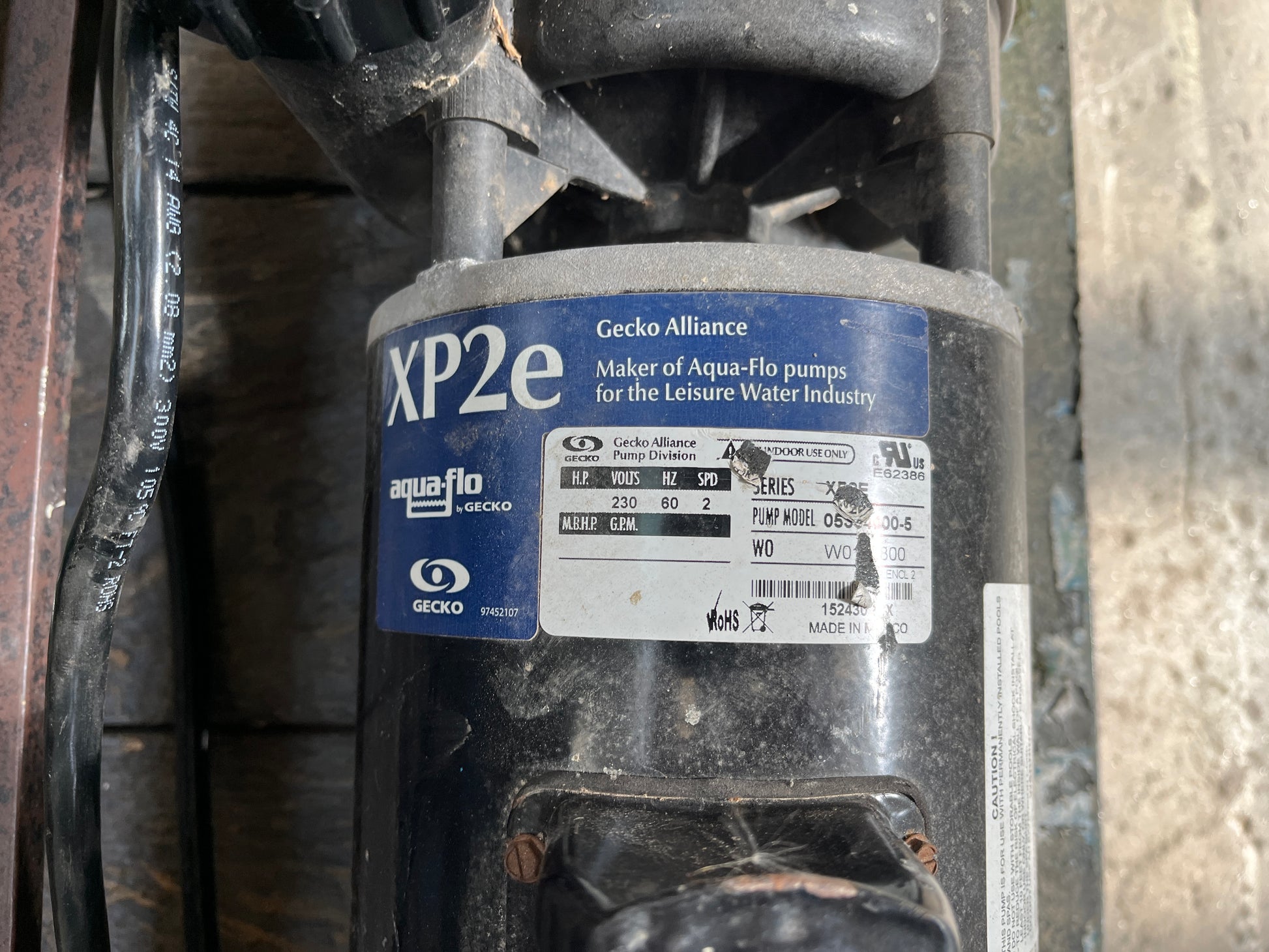

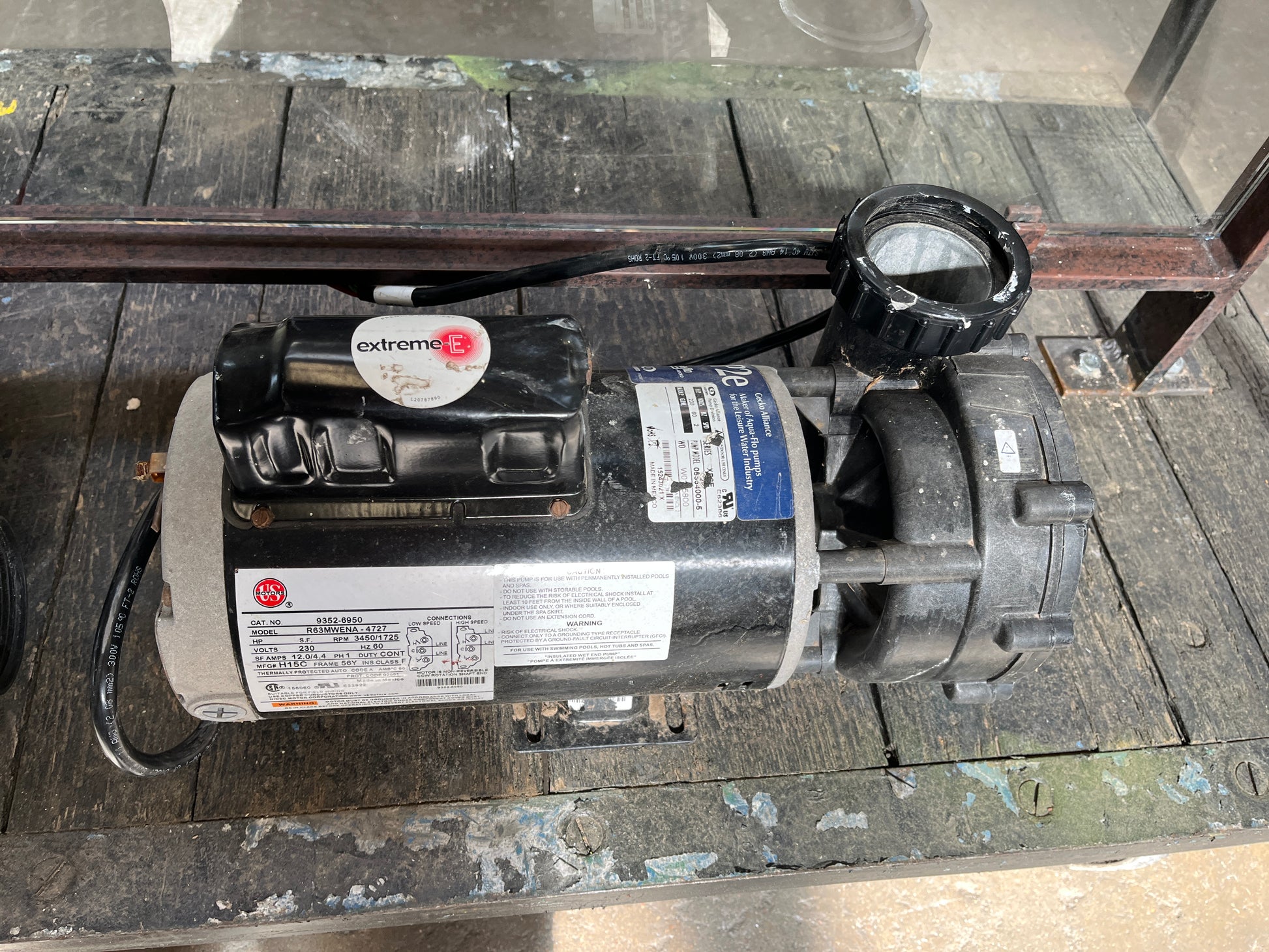

Pump

• Brand: Aqua-Flo by Gecko (XP2e series)

• Pump Model: 05320761-05 (label partially worn)

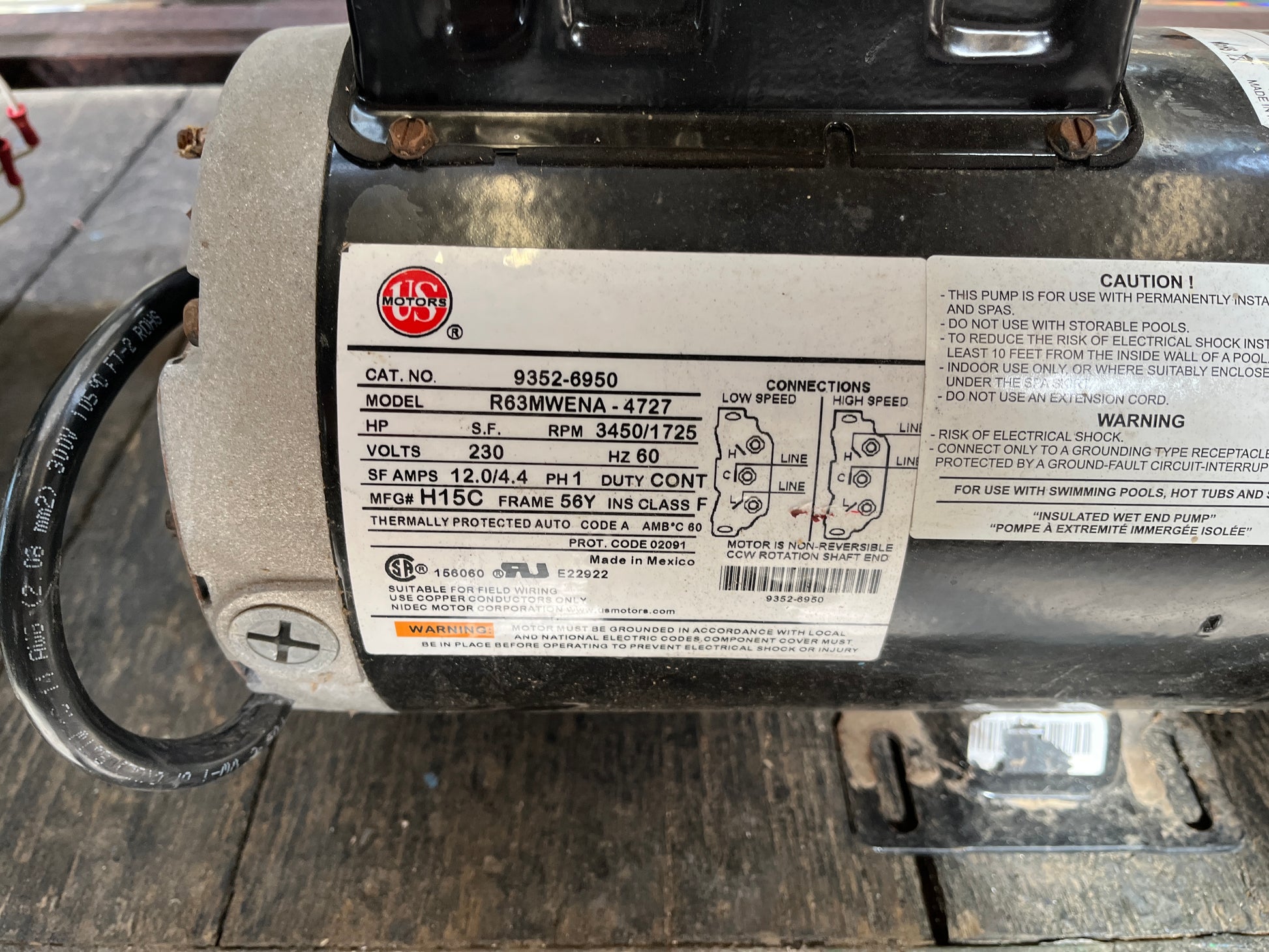

• Motor Model: R63MWENA-4727 (Century/A.O. Smith)

• Voltage: 230V

• Speed: Two-speed

• Amperage: 12.0 / 4.4 A

• Frame: 56Y

• Thermally protected

• Includes unions as shown

Condition
Used, in good overall condition with average cosmetic wear. Internal electronics look clean. Pump spins freely and housing is intact. Not fully bench-tested here, so it’s offered as untested but was removed from a functioning spa.
